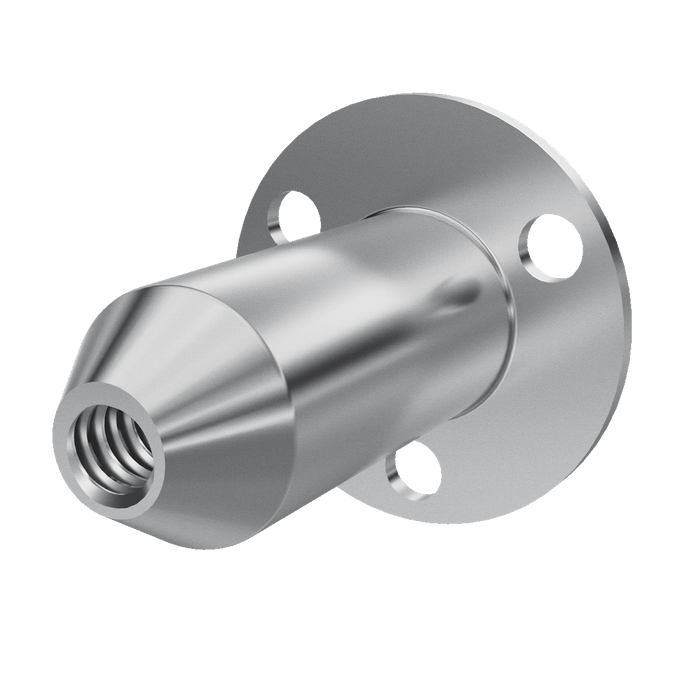

• TCH Threaded alignment pin right perspective view for exhibit panel and signage

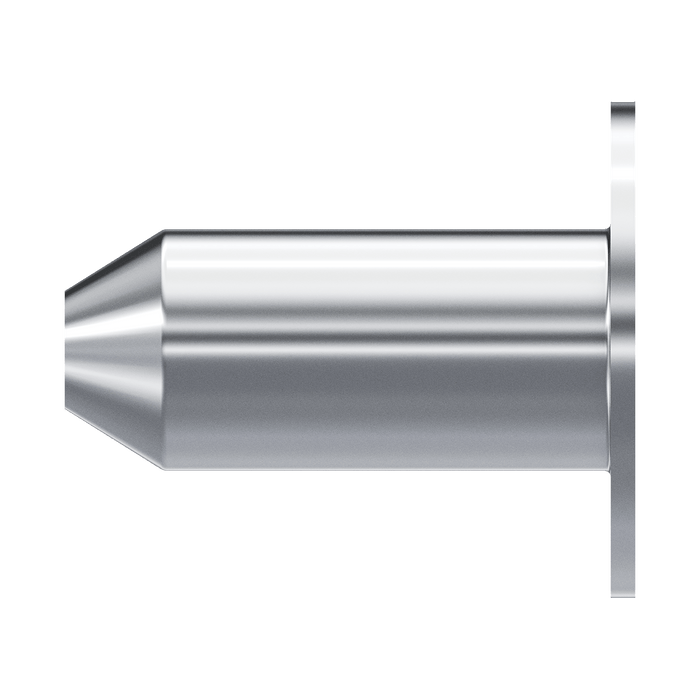

  • TCH Threaded alignment pin right view

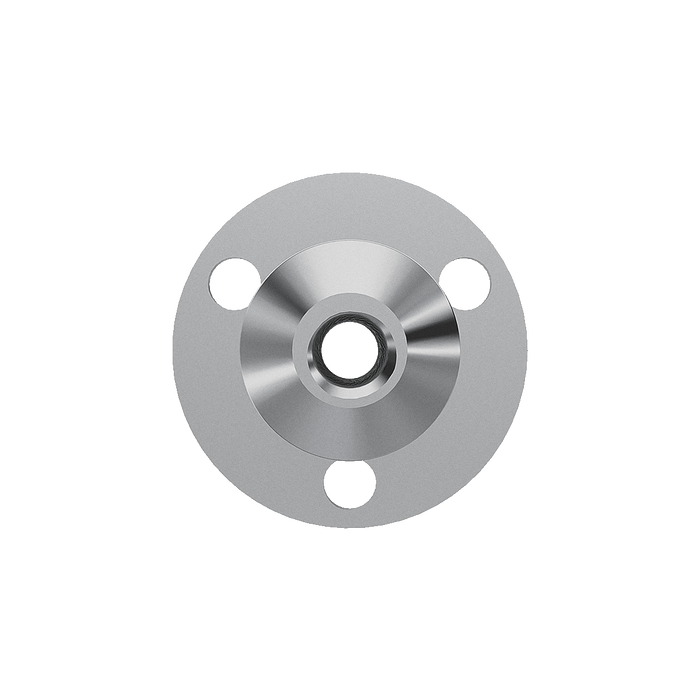

  • TCH Threaded alignment pin front view

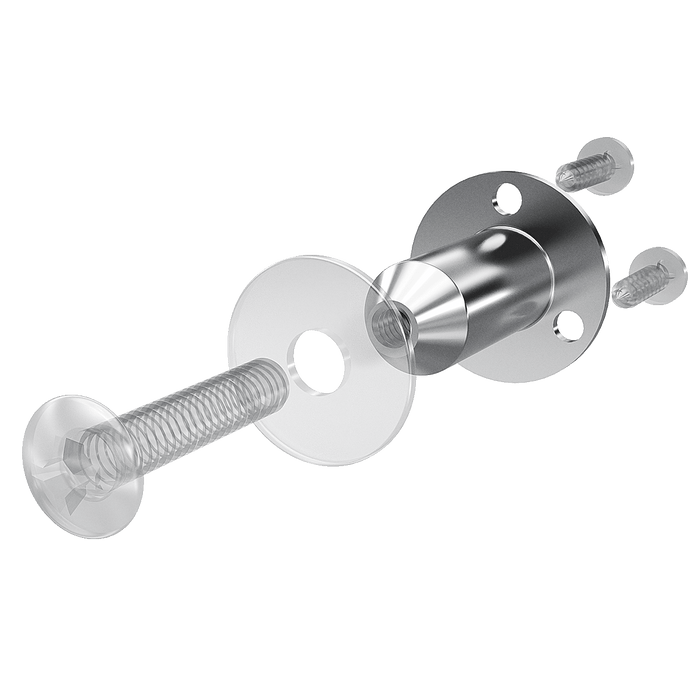

  • TCH Threaded alignment pin right view
  • TCH Threaded alignment pin front view

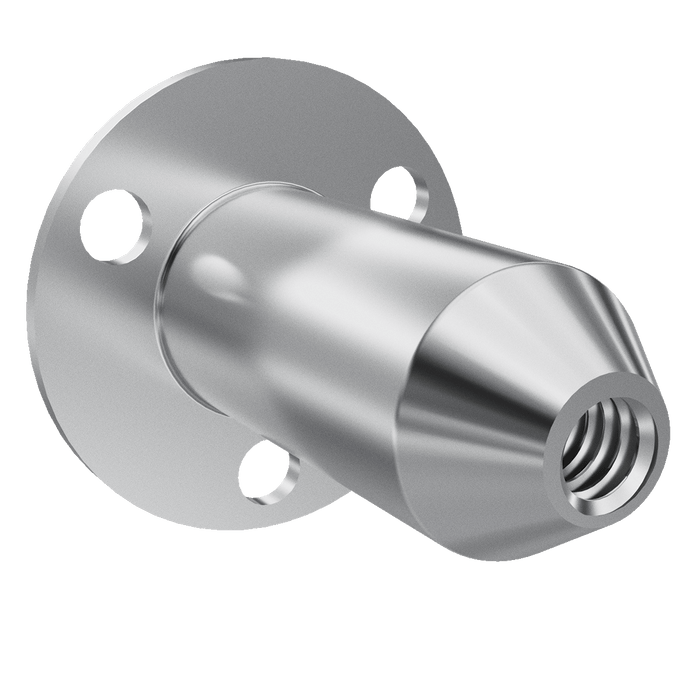

  • TCH Threaded alignment pin left perspective view
1 6

TCH

1/4-20 Thread Alignment Dowel Pin

1/4-20 Thread Alignment Dowel Pin

$3.46 USD
$4.55 USD $3.46 USD
Sale Sold out
Shipping calculated at checkout.
Size

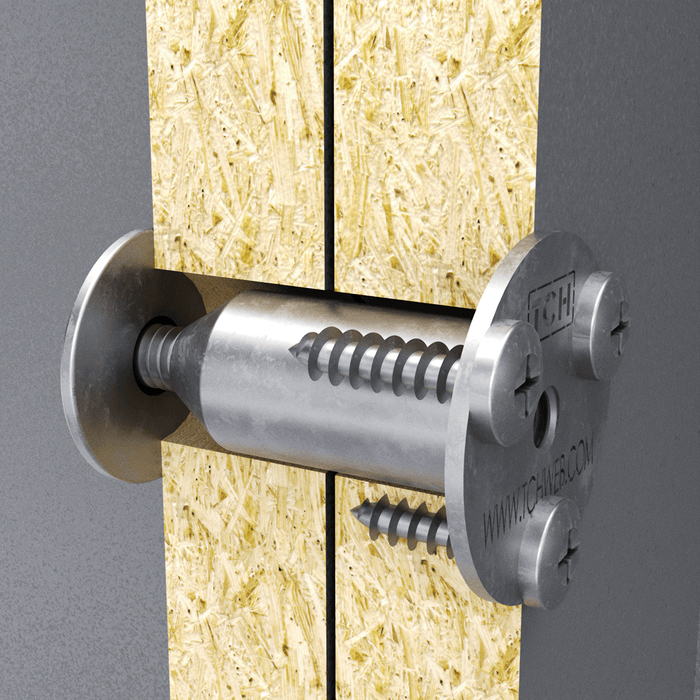

  • The pin provides a positive alignment to join and secure two panels with a machine screw (sold separately). The alignment pin speeds up setup and teardown time for booths, displays, and structures that get assembled and struck repeatedly.
  • Built for exhibit booths, tradeshow displays, film and TV set construction, portable staging, and sign to wall mounting, where panels must line up quickly and consistently on site.
  • Features a 1/4-20 UNC threaded shaft, 1.25 inch (31.8mm) length, and a three-hole mounting flange spaced at 120 degrees for flush, secure installation with screws sold separately.
  • Manufactured from steel with a bright zinc plate finish that resists corrosion, scuffing, and wear across repeated assembly cycles in busy production and rental environments.
  • Compact and lightweight at 0.11 lb, this pin pairs with rotary latches for combined alignment and latching systems. All screws and washers are sold separately
  • MFG Item No: 512-6005800
  • Material: Steel
  • Color/Finish: Bright Zinc Plate /
  • Width: 1.25in [31.8mm]
  • Height: 1.44in [36.6mm]
  • Depth: 1.25in [31.8mm]
  • Weight: 0.11lb [0.0 kg]
  • Thread: 1/4-20 UNC x 1.25 in
  • Country of Origin: China
  • Package Quantity: 1
  • Package Type: Bag
